Multiscreen HMI terminals for GMP Cleanroom Service
Digital Transformation in the life science sector sees modern GMP processes controlled and monitored by multiple digital platforms. Systec Solutions are specialist manufacturers of GMP Cleanroom HMI Solutions with large installed bases on most common digital platforms such as DCS , MES, ERP etc.
Leverage Multiscreen functionality including IGEL OS12 Multimonitor, Thin Manager Multimonitor and Windows Extended Screen to present two platforms delivered on two separate isolated LANS to a single IPC with Dual monitor functionality in the Cleanroom Environment.

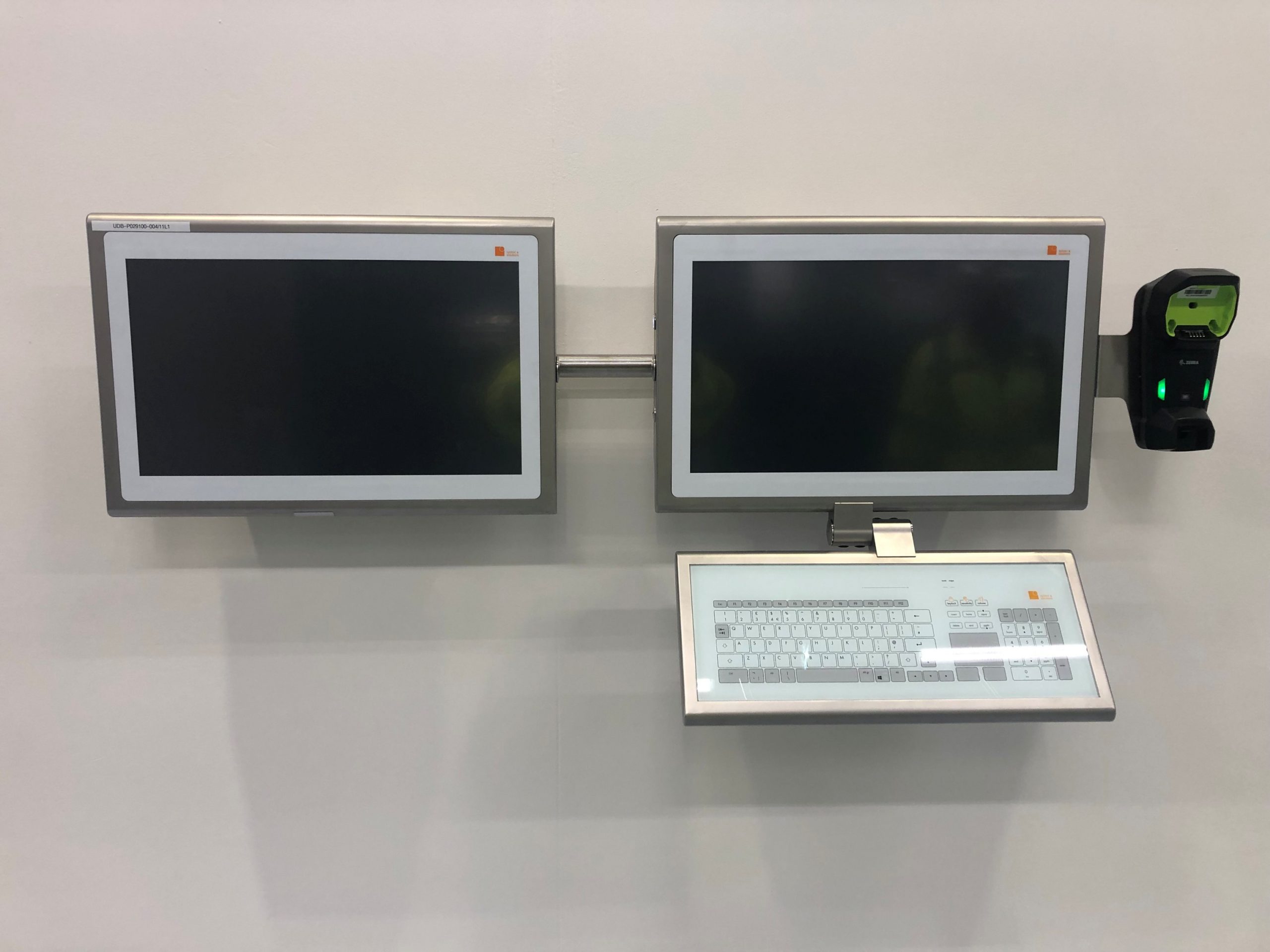

Horizontal Mounting Solutions from our extensive range of standard and custom mounting solutions permit us to present our dual screen set up with two monitors left and right of each other, typically MES on the right with Bluetooth Scanner reachable to the right hand side and DCS to the left. In this set up we can opt for a single keyboard oriented under the right screen or we can offer a dual keyboard solution. Horizontal mounts are offered for Direct Wall mount, pedestal floor and custom engineered solutions to suit your location.

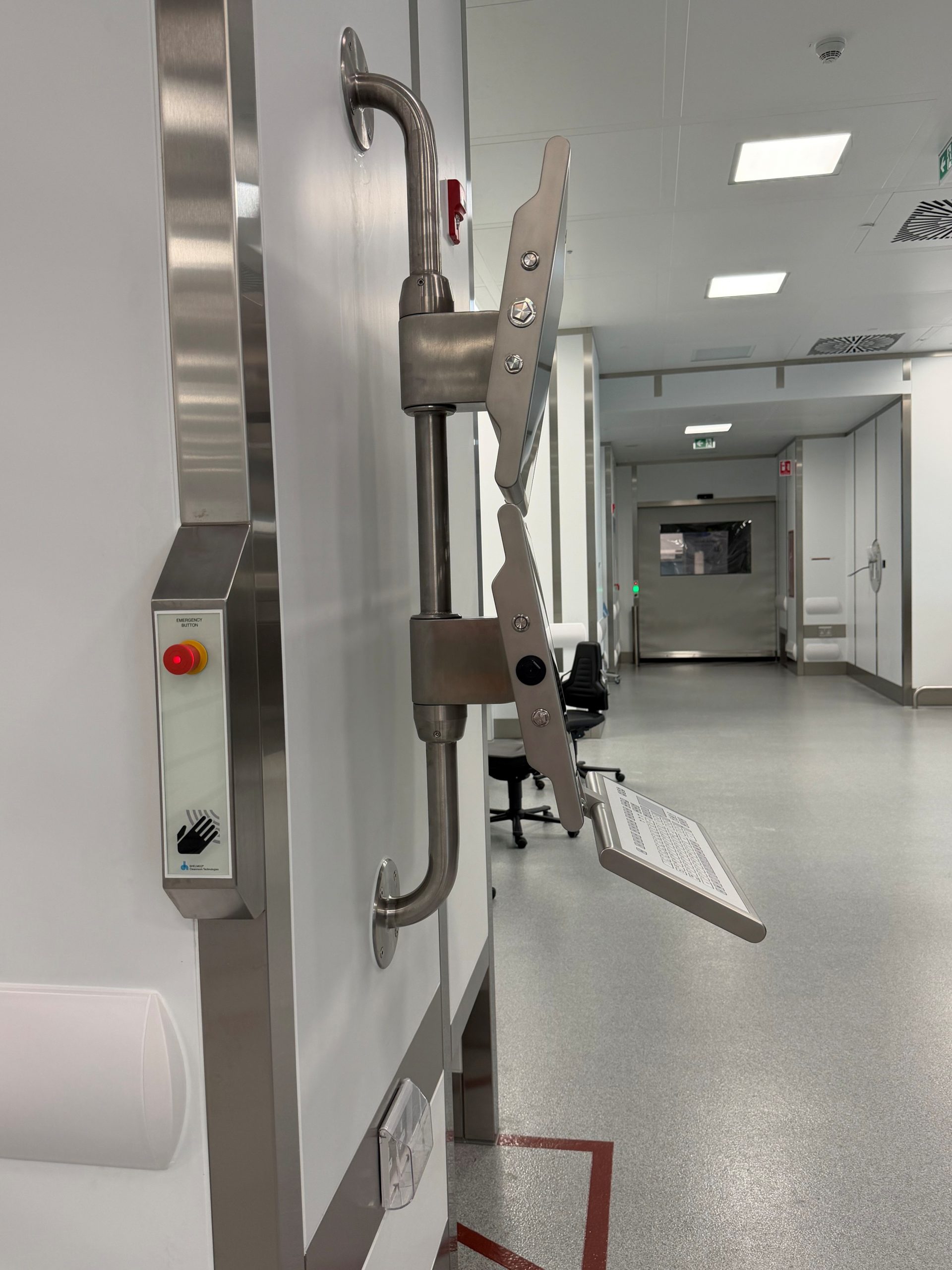

Vertical Stack solutions have become increasingly popular due to the fact that they take the same horizontal footprint on your cleanroom wall or equipment as a single screen HMI. It is often not a challenge to find the real estate space in a cleanroom to mount a single 22” 24” or 27” HMI terminal, these would typically be in the order of 600mm wide, it is usual that there is free vertical space at these locations to mount a second screen above to permit a combination of MES and DCS interaction or perhaps double DCS screen where operators can interact and monitor current process step and upstream or downstream systems on one location

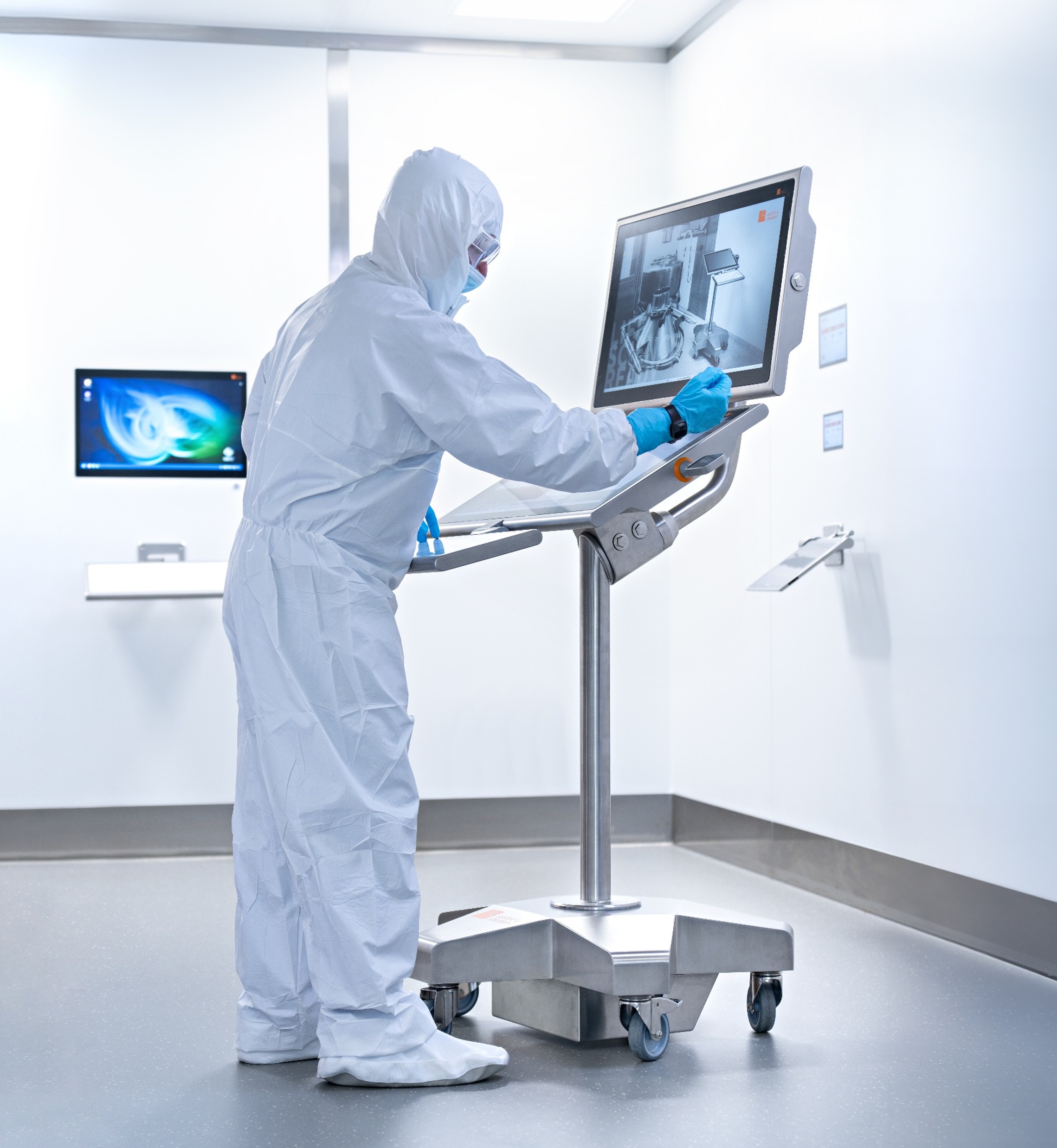

For Digital Roll out in existing facilities our Mobile Trolly Solutions offered in both Single and Dual Screen formats can be the most efficient means to deploy cleanroom HMI solutions. These Solutions offer the ability to deploy fast with minimal disruption and no challenging installation planning or budgeting. Our dual Cart solutions offers dual 22” or 24” Screens presented vertically on 5 star trolly base, these solutions come with oversized Li-Ion Batteries that far exceed 12 hour shift times and offer quick recharge solutions including wireless inductive charging for cable free charging. The design is safe, cleanable, freely moveable and life science ready for service in GMP cleanrooms
