Level Instrumentation
Vega Level Instrumentation provide accurate and reliable measurement and control instruments for all applications in water & wastewater treatment. Optimised technologies including Radar, Pressure, Conductive and Capacitive ensure optimal process safety, reduced costs and secure supply & quality of our most precious resource.

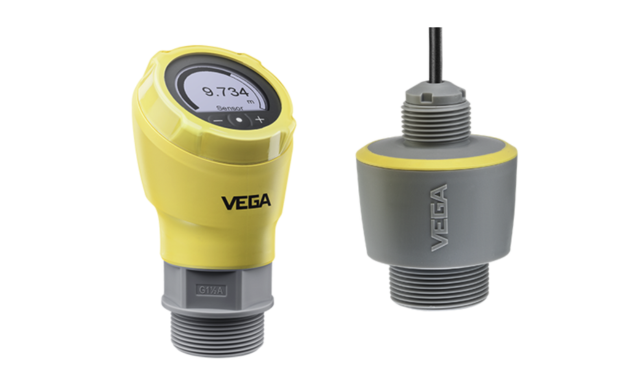

Radar Sensors
Measuring range up to 30m
Accuracy ±2 mm
Signal output options 4 … 20 mA/HART, Modbus, SDI-12
Unaffected by temperature, pressure or vacuum
Measurement right up to the sensor antenna itself, even when flooded.
Immune to the effects of dirt and buildup and do not have to be cleaned
Fixed cable version IP68
Beam angle ≥4° narrow focusing, performs extremely well in confined spaces
Adjustment via smartphone
Atex Certified

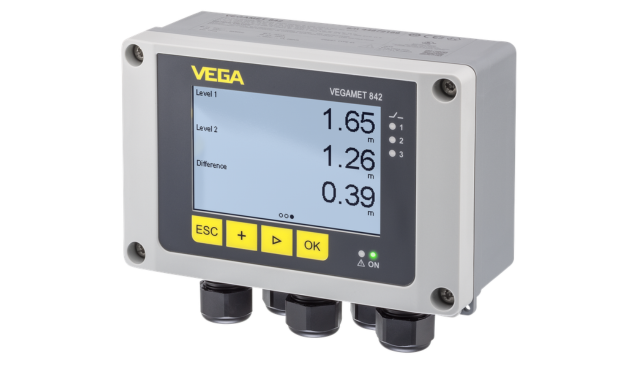

Level Controllers
Large graphic display
Weatherproof housing
Simple setup and commissioning
Optimized for the water and wastewater industry
1/2x 4 … 20 mA/HART inputs
1/2/3x 0/4 … 20 mA outputs
3/4/6x operating relay
Built in pump control
Adjustment via smartphone
Atex Certified

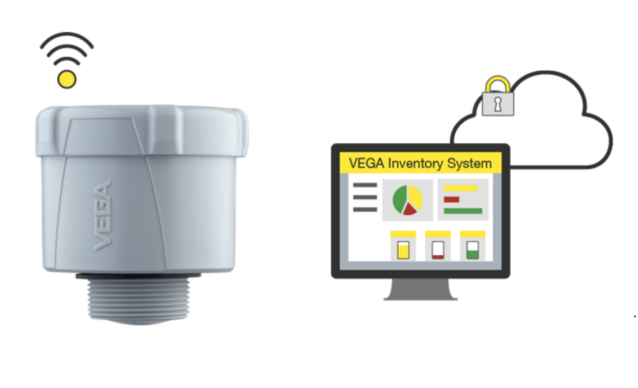

Battery Powered IOT Radar Level Sensors
Measuring ranges up to 30 m
Wireless 80 GHz radar sensor
Battery life up to 10 years and longer
Meas. data via Low Power wireless technology
All data End-to-end encrypted
VEGA Cloud security Measured values always available
Easy access via tablet, smartphone, PC
Data available at any time

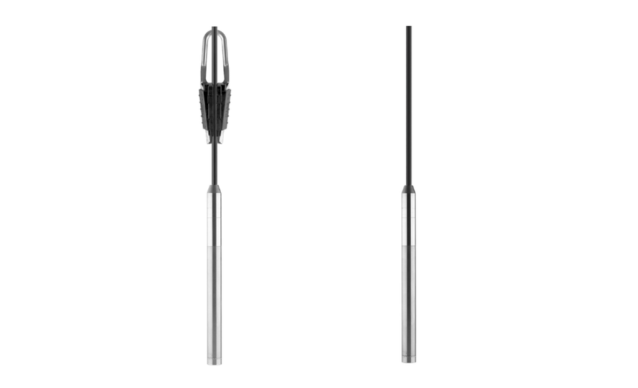

Hydrostatic Level
Measuring range – Pressure 0 ... 60 bar
Process temperature -20 ... 80 °C
Two-wire: 4 … 20 mA/HART
Drinking water approval
Atex approval
Ceramic measuring cell
