Leak Testing
Hanley Technology, in partnership with Cincinnati Test Systems, delivers advanced leak and flow testing solutions for multiple industries. We Offer a full range of technologies including pressure decay, vacuum decay, mass flow, and tracer gas testing. Our solutions include standalone instruments, multi-channel systems, and fully customised turnkey machines supporting testing requirements in medical devices, machine builders, automotive, and general manufacturing with high-precision.

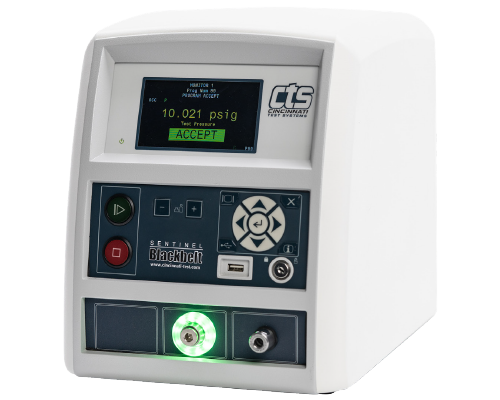

Single Channel Test Instruments Medical Devices
One channel, multiple test methods—pressure, vacuum, differential, and flow in one unit
Ultra-high-resolution sensing with 24-bit A/D for pinpoint leak detection
Exceptional accuracy up to ±0.05% FS with resolution down to 0.00001 psi.
Flexible multi-port testing with up to 4 sequential test ports
Wide range—from vacuum up to 500 psi and flow to 3000 sccm
Stable results with integrated environmental drift compensation
Seamless connectivity via EtherNet/IP, TCP/IP, RS232, PROFINET, and USB
Automation-ready with configurable digital I/O for full system control
Built-in storage for thousands of results with full traceability
Compact benchtop design for easy integration into any production line

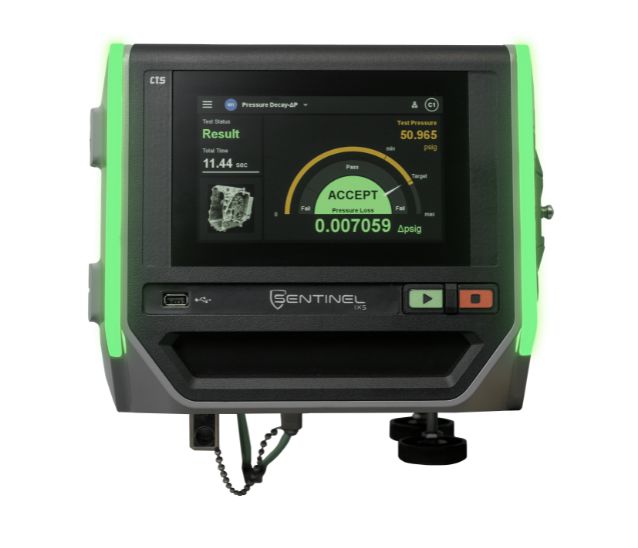

IX5 Single Channel Test Instruments for General Industry
One instrument—pressure, vacuum, and flow leak testing in a single platform.
Up to 9 test methods including pressure decay, mass flow, burst, and crack testing
Faster setup and cycle times with automated test sequencing
Intuitive touchscreen with visual Test Sequence Creator for rapid configuration
Built-in PLC functionality reduces need for external control hardware
High-precision measurement with advanced sensors for repeatable results
Flexible architecture supports complex, multi-step test programs.
Wide pressure and flow ranges to suit diverse applications.
Real-time data, graphing, and onboard storage for full traceability
Full connectivity with EtherNet/IP, PROFINET, TCP/IP, and USB integration

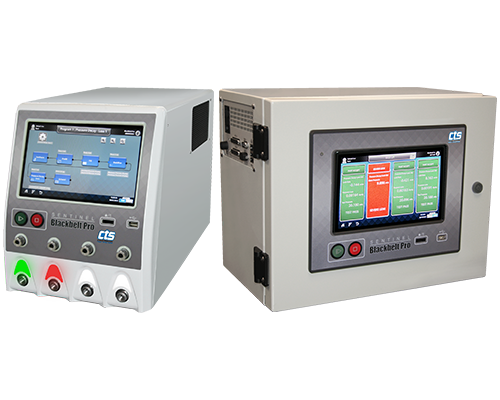

Blackbelt Pro Multi-channel Test Instrument
One instrument—pressure decay, vacuum, differential, and flow testing in a single platform
Advanced multi-method capability for complex and high-spec applications
Faster cycle times with optimised test sequencing and processing
High-resolution measurement with 24-bit A/D and precision transducers
Exceptional accuracy up to ±0.05% FS with ultra-fine leak detection
Wide pressure range from vacuum up to 500 psi with extended flow capability
Flexible architecture supporting multi-step and multi-stage test programs
Stable results with integrated environmental drift compensation
Full connectivity via EtherNet/IP, PROFINET, TCP/IP, RS232, and USB
Automation-ready with configurable I/O and onboard data storage for traceability

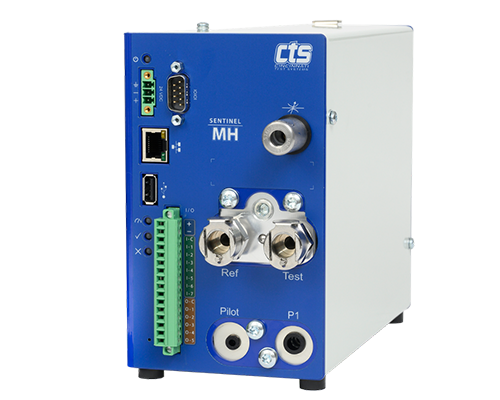

CTS MH Test Instrument
High-speed leak testing with ultra-stable, repeatable results
Multi-method capability—pressure decay, vacuum decay, and mass flow in one unit
Exceptional precision with resolution down to 0.000001 Δpsi
Wide test range from full vacuum up to 200 psi for maximum application flexibility
Handles up to 32 test programs for multi-product production lines
Built-in storage for up to 5,000 results—full traceability included
Compact, modular design (just 6.5” x 3.5” x 8.5”) for tight integration
Automation-ready with Ethernet/IP, TCP/IP, RS232 and digital I/O
Lightweight yet powerful ideal for distributed test stations
Engineered for IP67 testing perfect for sealed and critical components
Scalable modular system expand channels as your production grows
